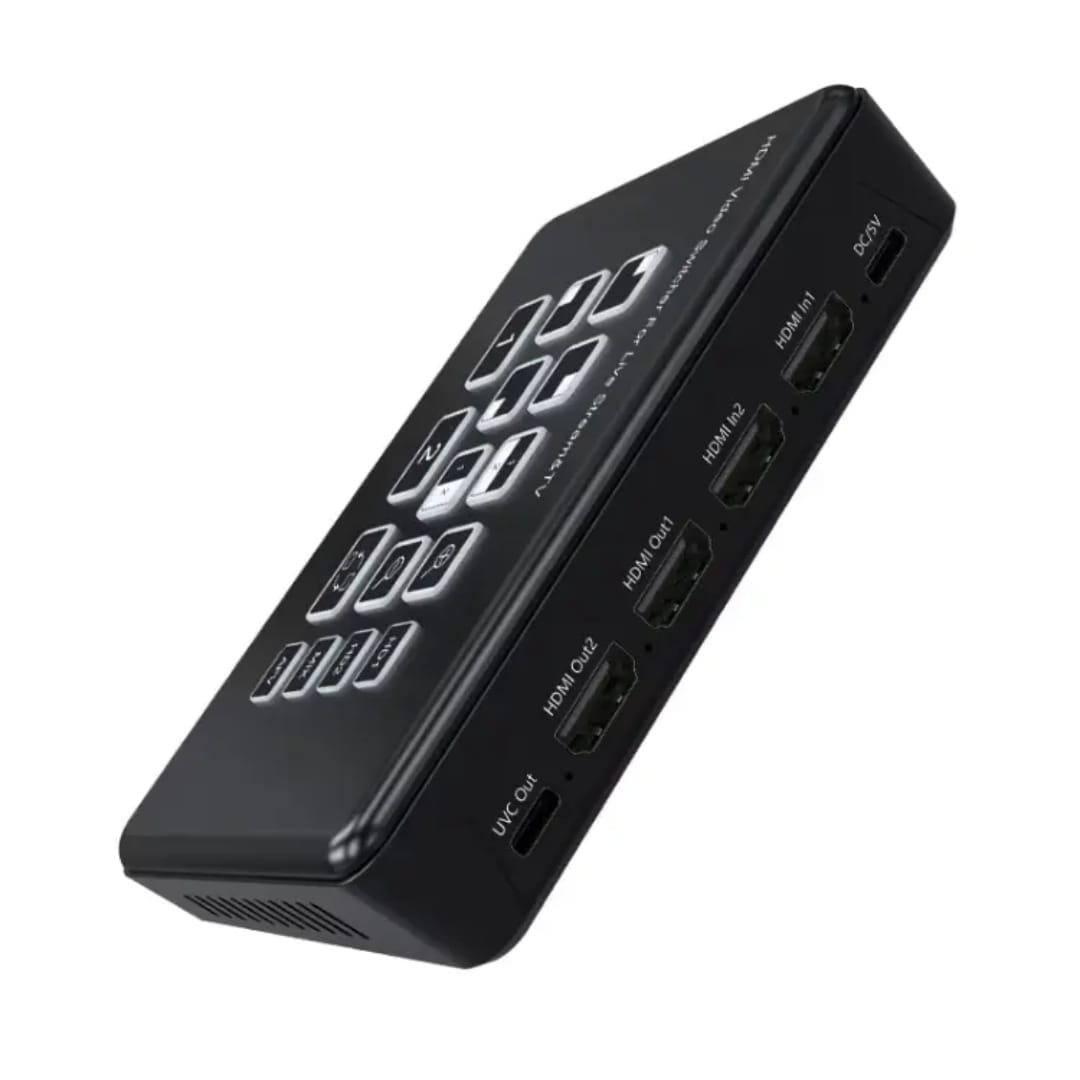

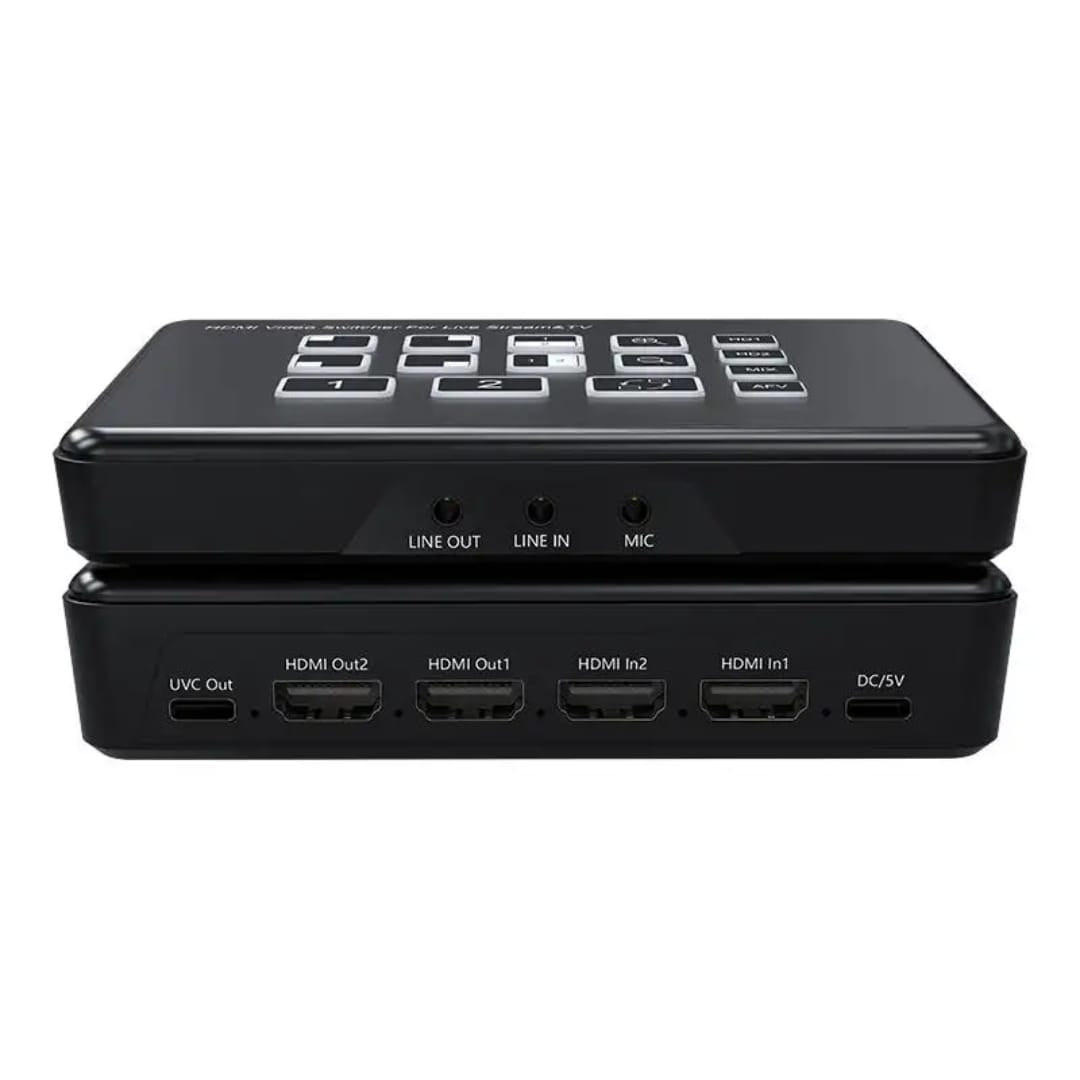

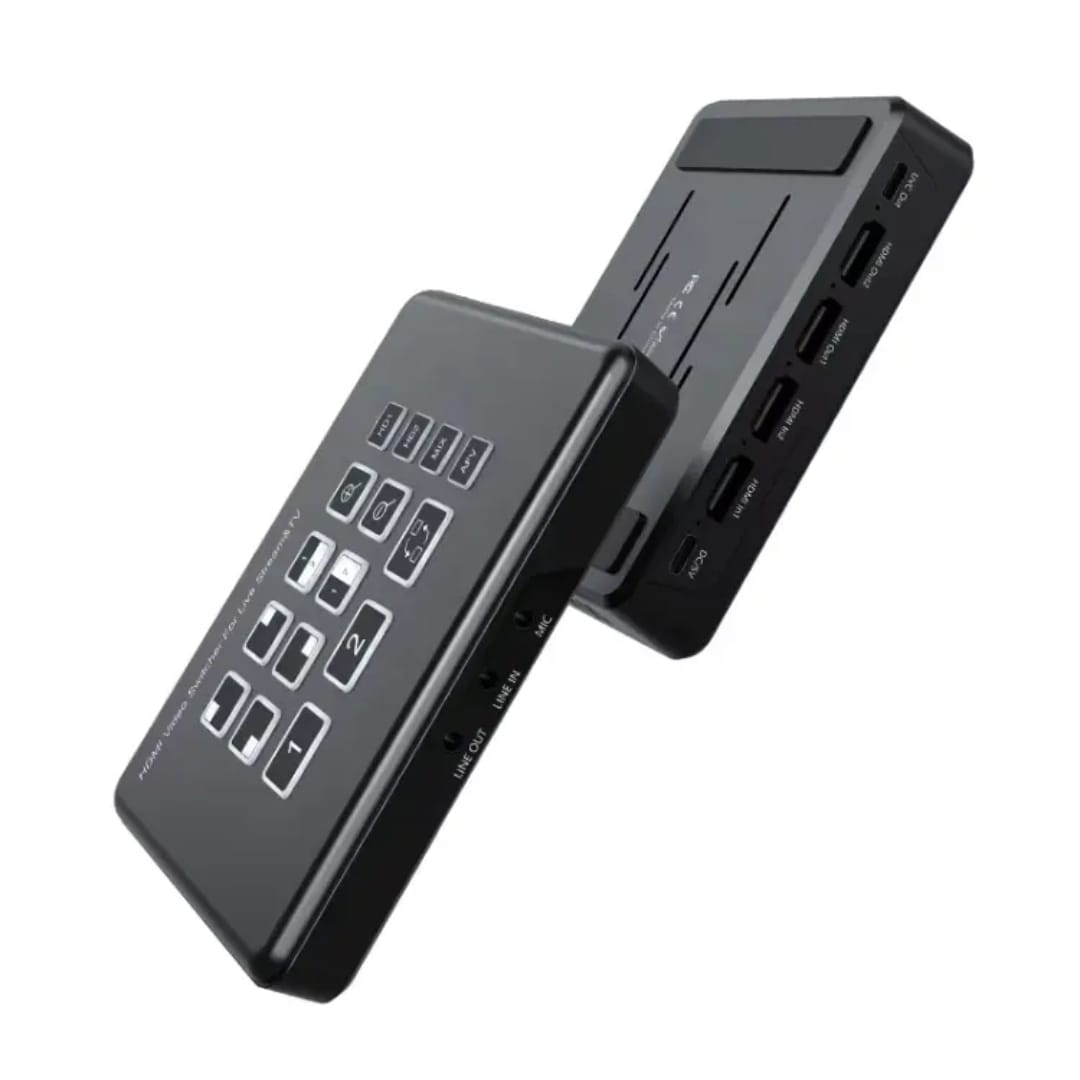

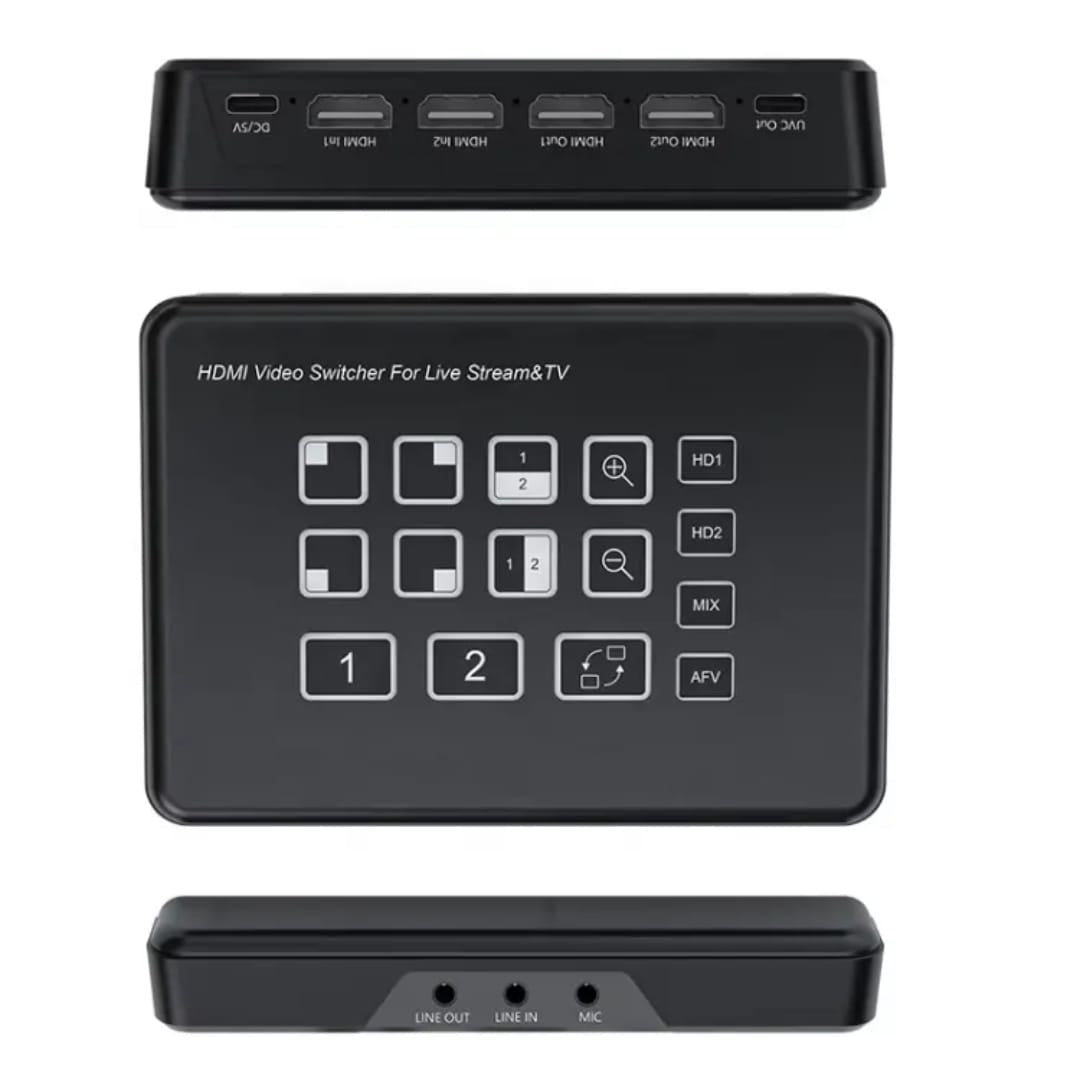

VIDEOCAST 2 Channel V2 Video Switcher with USB and HDMI Loop out

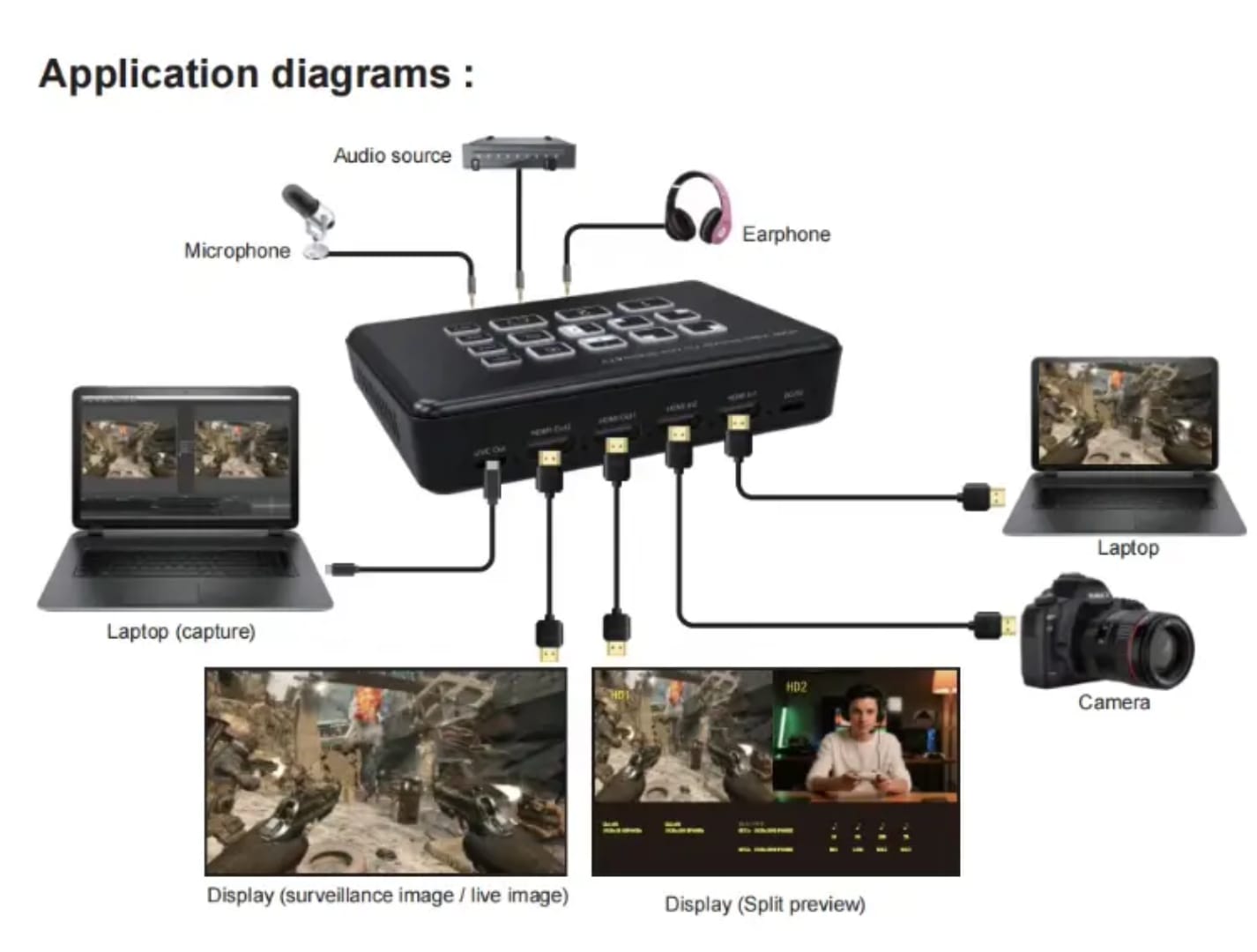

The 2 Way VIDEOCAST HDMI Video Switcher for Live Streaming, it supports 2 HDMI inputs. Input and output resolution support 1920X1080@60Hz, and support HDCP1.4 standard. Support HD embedded audio or external analog audio, , after mixed processing, can be embedded in the output HD signal or output from the analog port. Suitable for program production, interview and speech on-site production, outdoor experience events, school courseware production and other video switching needs. It can be used in live streaming and various event venue.

Features :

* 2 HDMI inputs, 2 HDMI outputs;
* One HDMI output supports PVW multi-view preview, another HDMI output supports PGM output;
* 1 way Type-C port UVC capture output;
* Supports OSD display of input channel signals, resolution information, and volume information;
* In the mix mode, HDMI embedded audio select fixed HDMI audio and mix Mic/LINE IN audio;
* Support HD audio following (fixed following PGM);
* One Type-C 3.0 capture and streaming interface supports YUY2 video format and support UVC 1.0;* Support 4 picture in picture modes(PIP), PIP image enlarged or reduced;
* Support left and right two image, upper and lower image;
* Extensive compatibility: fully supports mainstream live streaming and media software, including
OBS Studio, PotPlayer, and VLC etc.;
* Support power-off save settings;

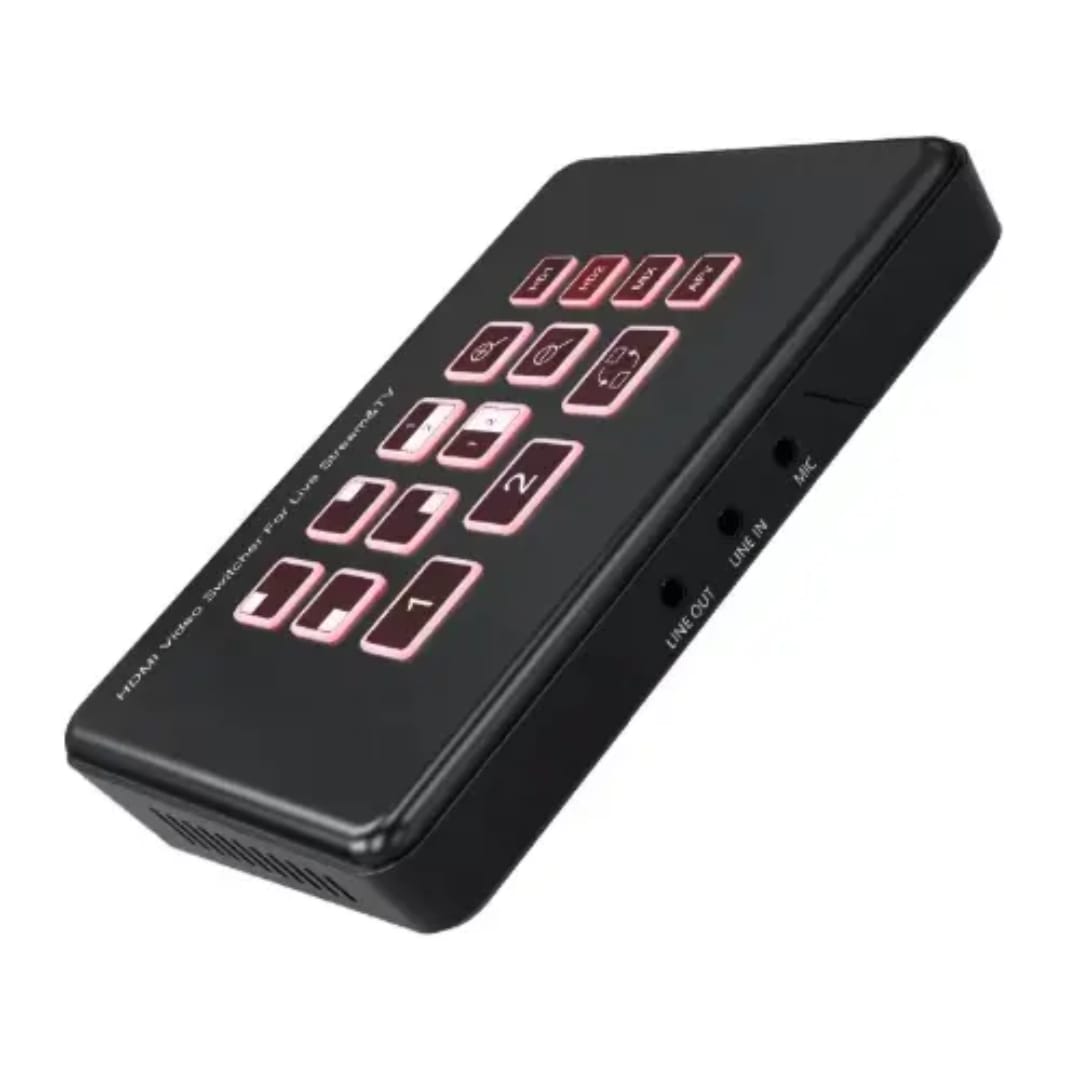

* High quality keys, color backlight design.

Package include

1. 2 way HDMI video switcher for live streaming
2. Type-c to USB 3.2 Gen1 cable
3. Type-C 5V 1A power adapter
4. User manual
