KPC ENTERPRISES

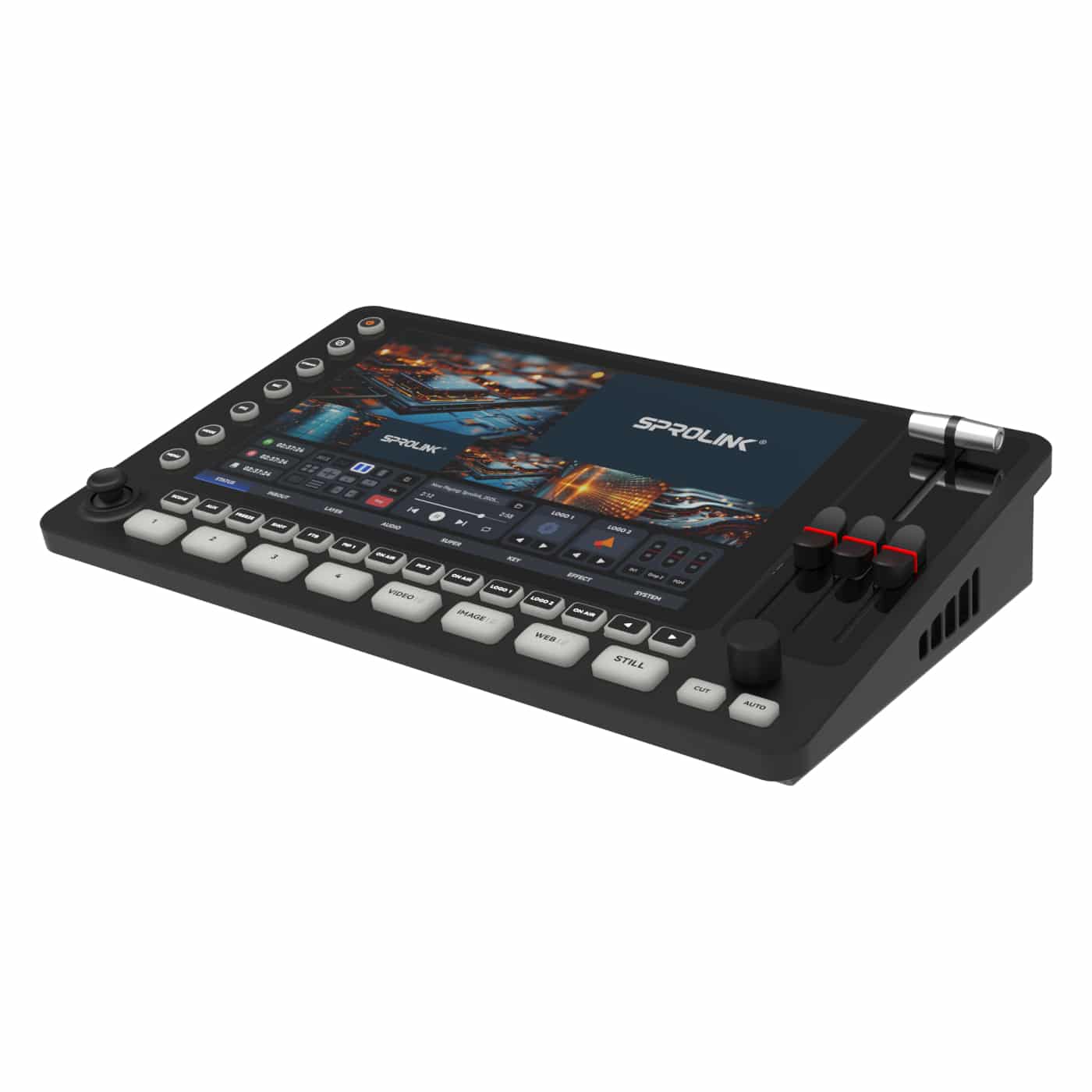

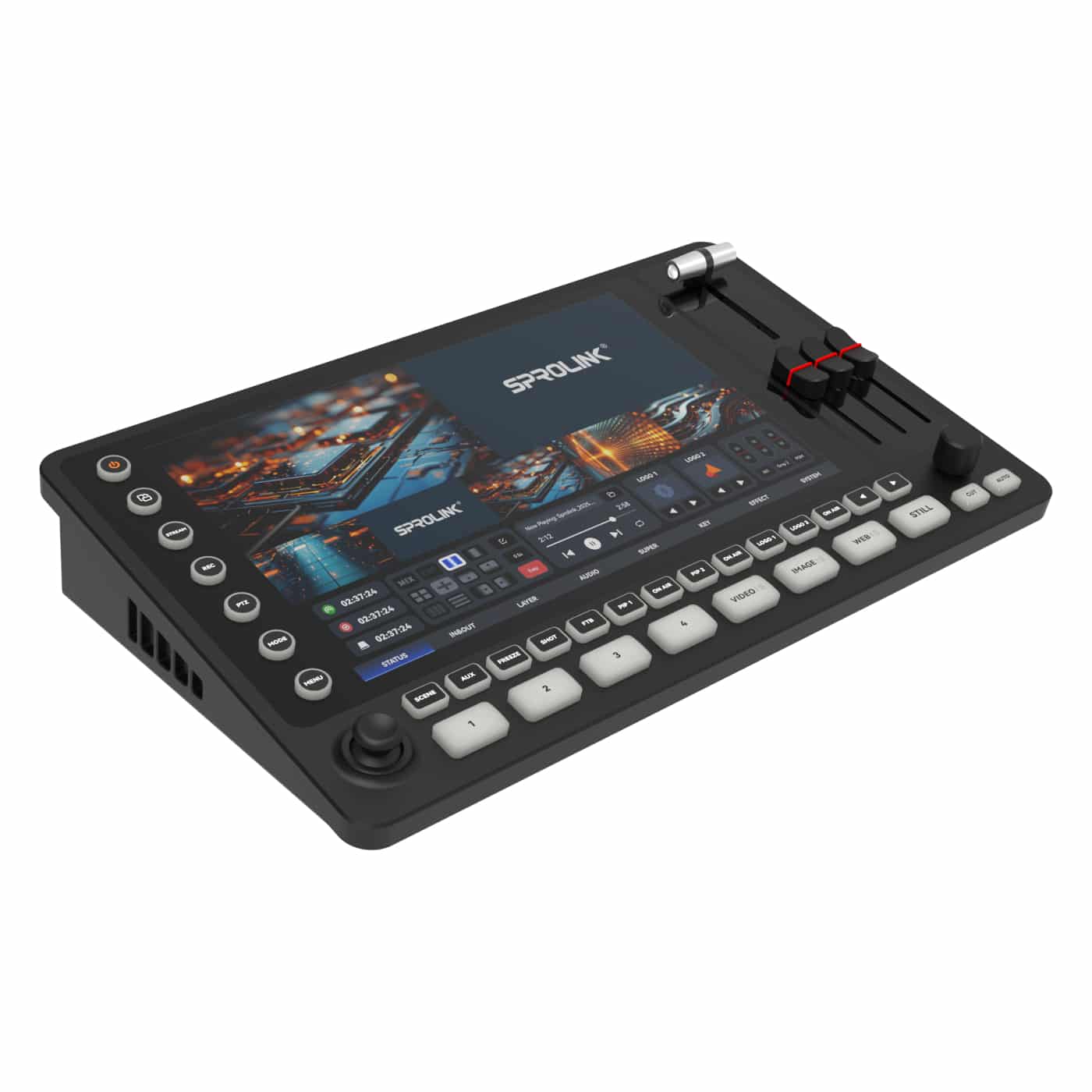

Sprolink NeoLIVE ME5

Sprolink NeoLIVE ME5

Regular price Rs. 94,000.00
Regular price Rs. 120,000.00 Sale price Rs. 94,000.00
Sale Sold out
Shipping calculated at checkout.
ORDER ON WHATSAPP

Specifications

Interface
Input:
3G-SDI 4xSDI SDI 1080p Input
HDMI 2.0 4xHDMI HDMI 4K Input
USB 2.0 2xUSB USB-A Video Playback/image Loading/uvc Input

Output:
3G-SDI 1 1xSDI PGM Output
HDMI 1.3 1xHDMI-A PGM Output
HDMI 1.3 1xHDMI-A PVW / PGM / PST Selectable Output
USB 3.0 1xUSB Type-C UVC Output

Audio:
MIC IN
2x3.5mm Audio Jacks Compatible With Mic/line Stereo Input
2x6.35mm XlR Jacks Compatible With Mic/line Stereo Input
PHONES
1x3.5mm Audio Jack Monitoring Output

Control:
LAN 1xRJ45 Network Control PTZ Camera Control

Input Resolution:
720p@50/60 | 1080i@50 | 1080p@24/30/50/60
1024x768@60 I 1280x768@60 I 1280x800@60
HDMI SMPTE 1280x1024@60 I 1360x768@60 I 1366x768@60
HDMI VESA 1440x900@60 I 1600x1050@60 I 1680x1050@60
1920x1080@23.98/24/25/29.97 /30/50/59.94/60 3840x2160@30/50/60
Output Resolution
HDMI SMPTE 1080p@24/30/50/60
USB 3.0 Video Streaming 1080p@24/30/50/60

Performance:
Video Sampling YUV 4:4:4
System Latency <3 Frame
Audio Latency 0-500ms (0-30/25 Frame)

Power
Input Voltage: 12V/2A | Constant Power: 20W

Environment
Temperature: 0℃~70℃ | Humidity: 10%~85%

Weight
Net Weight: 3kg | Gross Weight: 6kg

Dimension
Net Dimension: 340mm x 212mm x 80mm
