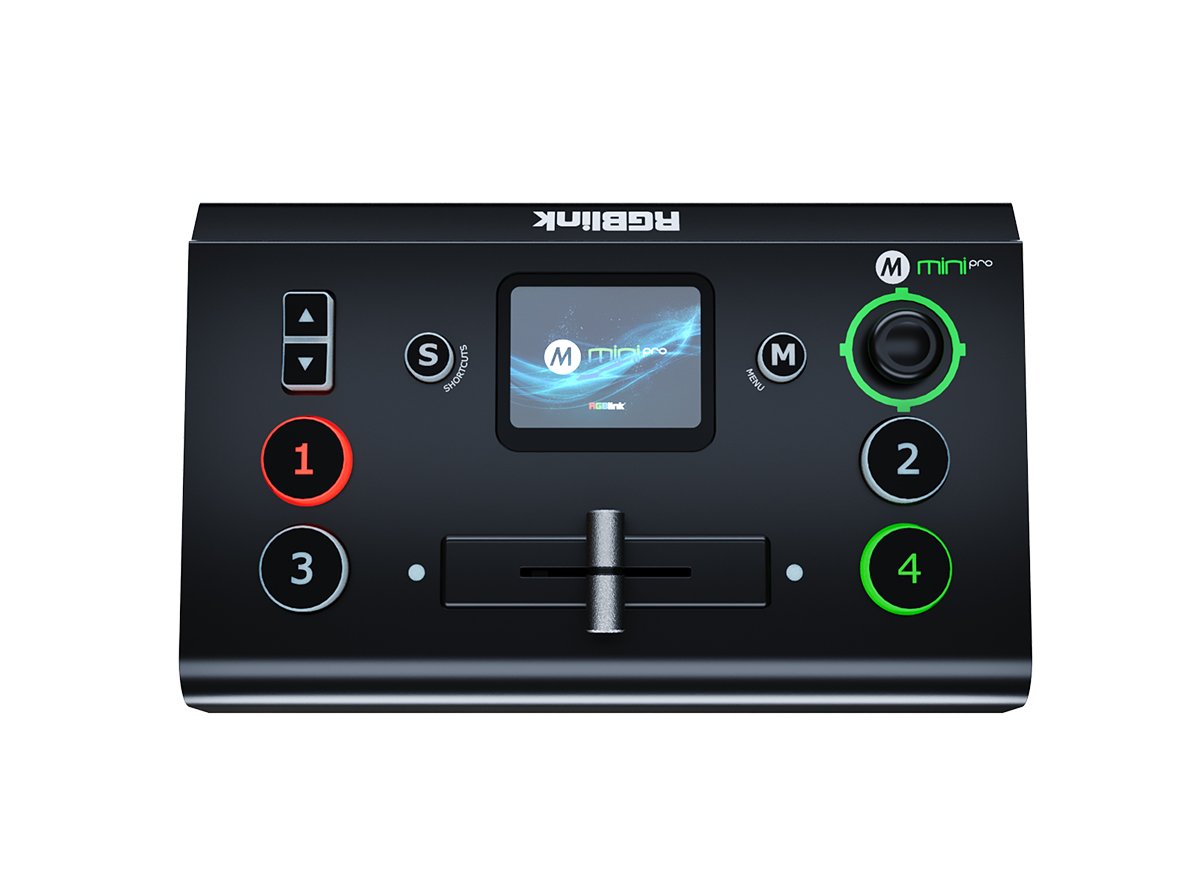

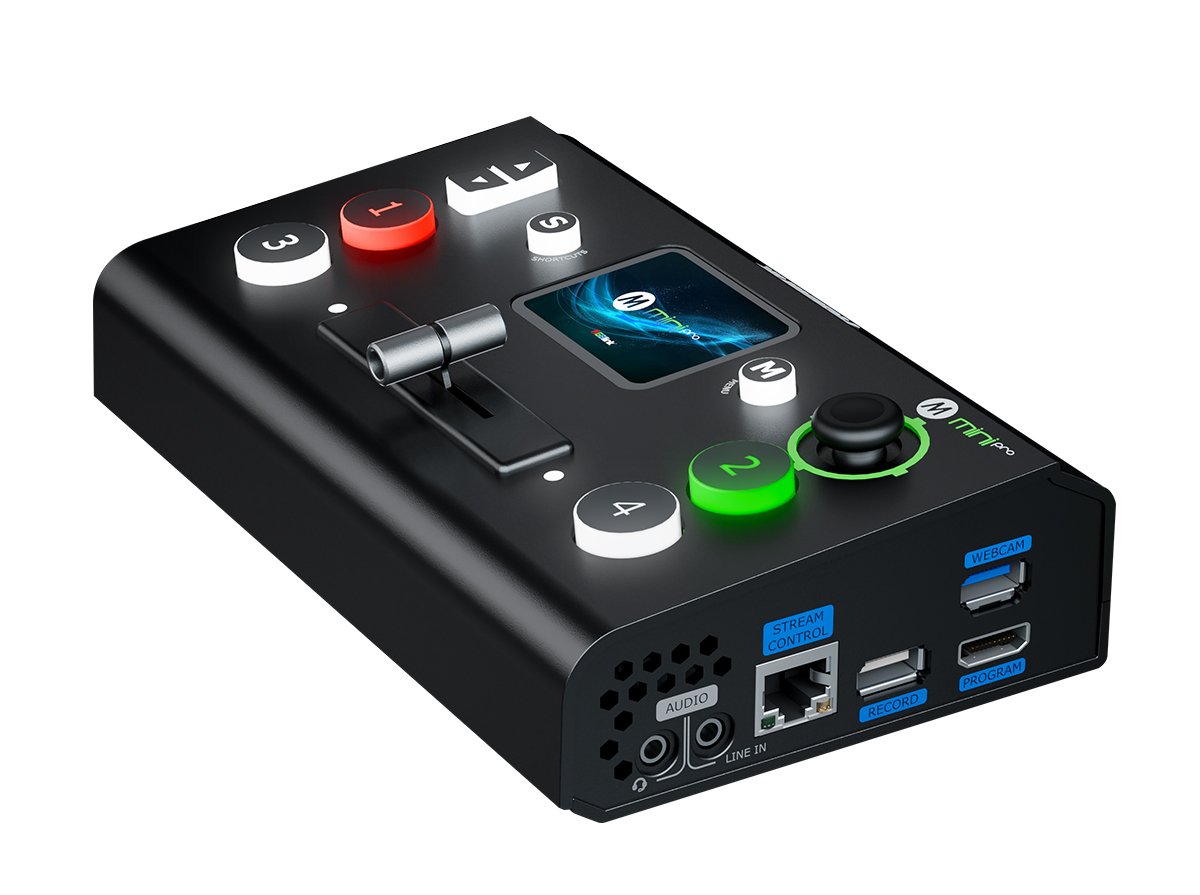

The RGBlink Mini Pro V3 is a compact, all-in-one live video switcher designed for professional multi-camera productions. Equipped with 4 HDMI 2.0 inputs, 2 HDMI outputs, and advanced features like PTZ camera control, USB recording. This third-generation upgrade offers improved output flexibility, built-in touchscreen control, powerful transition effects, chroma keying, picture-in-picture, and real-time video/audio mixing.
Key Features:
· 4× HDMI 2.0 Inputs (supports up to 4K60)
· 2× HDMI Outputs for program and multiview
· USB Webcam Out (UVC) – plug-and-play with Zoom, OBS, Teams
· USB Recording – record in MP4 format up to 16 Mbps
· 2.1" Touchscreen Display – for intuitive control and preview
· PTZ Camera Control – built-in joystick for IP VISCA support
· RTMP/NDI Streaming – stream to 2–4 platforms or up to 32 with TAO Cloud
· Audio Mixing – HDMI embedded + 2× 3.5mm mic/line inputs
· T-bar and Transition Effects – smooth cuts, fades, and wipes
· Compact Design – ideal for portable or desktop setups

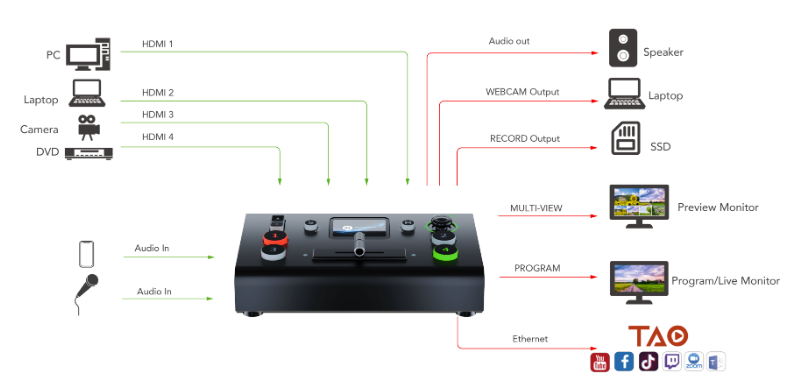

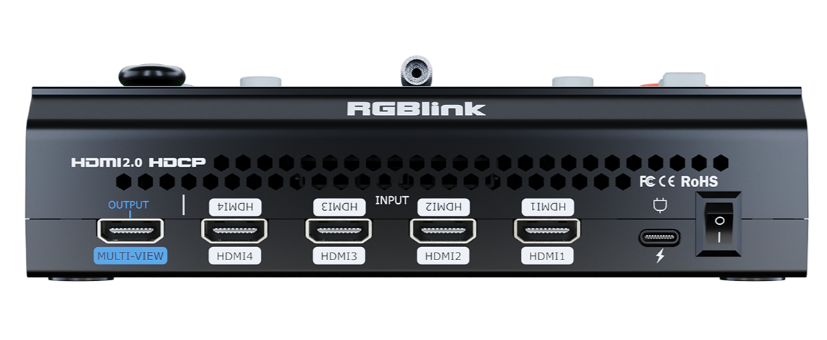

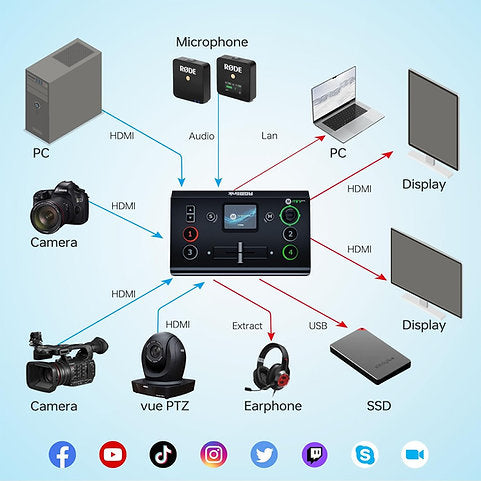

Connectivity & Interfaces
- HDMI 4K Inputs: 4× HDMI-A (Supports HDMI 2.0)
- HDMI Outputs: 2× HDMI-A (Up to 1080p60)
- USB Ports:
1× USB-A for Recording (MP4 format)
1× USB-A for Streaming (UVC webcam output) - Audio Input: 2× 3.5mm Mini-Jack (Mic/Line)
- Audio Output: 1× 3.5mm Mini-Jack
- Communication/Streaming: 1× RJ45 (LAN)
- Power Supply: 1× USB-C (PD 3.0 Compatible)
Performance & Resolution
- Input Resolutions via HDMI 2.0:
1280×720p@50/60, 1280×768p@60, 1280×1024p@60
1360×768p@60, 1366×768p@60, 1600×900p@60
1920×1080i@50/60, 1920×1080p@30/50/60
3840×2160p@23.97/24/25/29.97/30/50/59.94/60 - Output Resolutions:
HDMI 1.3: 1280×720p@50/60, 1920×1080p@24/30/50/60
USB: 1280×720p@60, 1920×1080p@24/25/30/50/60 - Video Bit Depth: 8-bit / 10-bit / 12-bit
- Color Space: RGB 8bit, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0
- Video Formats: HDMI 2.0, HDCP 2.2
- Latency: Less than 3 frames
Audio Specifications
- Audio Format: LPCM, 2-Channel, 24-bit / 16-bit, 48kHz
Recording & Storage
- Recording Format: MP4 (up to 16 Mbps)
- Supported Disk Formats:
- FAT32 (up to 32GB)
- exFAT (64GB to 2TB)
Supported Standards
- HDMI 2.0
- USB 3.0
- H.265 / HEVC (ITU-T H.265 / ISO/IEC 23008-2)
Power & Environment
- Power Compatibility: USB Power Delivery (PD 3.0)
- Input Voltage: PD 12V / 1.5A
- Max Power Consumption: 20W
- Operating Temperature: 0℃ – 60℃
- Humidity Range: 10% – 85%
Dimensions & Weight
- Net Dimensions: 180.6mm × 112.7mm × 53mm
- Packaged Dimensions: 255mm × 145mm × 85mm
- Net Weight: 0.42 kg
- Packaged Weight: 1.20 kg
Best Applications:
- Live Event Production & Conferences
- Church Services & Religious Broadcasts
- Educational Streaming & Online Teaching
- Podcasts & Talk Shows
- Corporate Webinars & Hybrid Meetings
- Field Reporting & Outdoor Productions
What's in the Box:
- RGBlink Mini Pro V3 Switcher
- USB-C Power Cable
- User Manual
- Warranty Card
With its rich connectivity, pro-level control options, and intuitive interface, the Mini Pro V3 is ideal for users seeking professional-grade results without a bulky studio setup. It's a powerhouse for streaming, recording, and switching—all in one device
