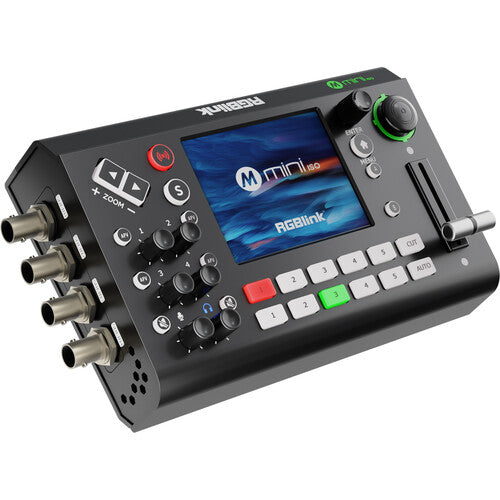

RGBlink MINI-ISO 10-Channel Video Mixer Switcher for Live Streaming

Power up your live production with the RGBlink MINI-ISO, a compact yet powerful 10-channel all-in-one video mixer and switcher designed for streamers, creators, and professionals. Whether you are broadcasting live events, webinars, or studio shows, this versatile device brings seamless switching, real-time previewing, and audio/video mixing into one smart unit.

Key Features:

• 10-Channel Multi-Format Input: Supports HDMI, USB, and IP streams for maximum flexibility.

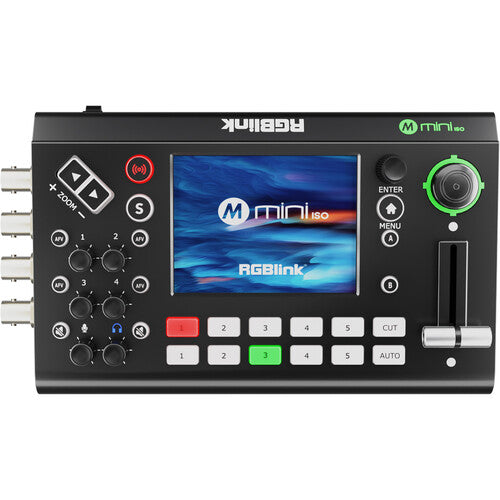

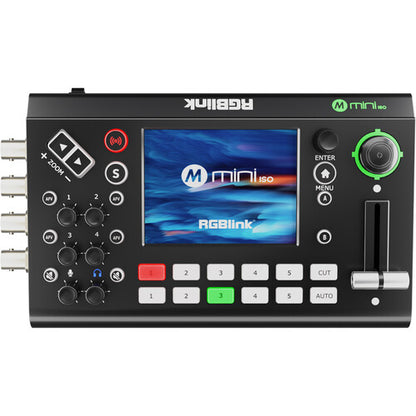

• Built-in Touchscreen Control Panel: Intuitive interface for real-time control, switching, and preview.
• Professional Audio Mixing: Embedded audio support with sync and mixing capabilities.
• Direct Recording & Streaming: Stream live to platforms like YouTube, Facebook, or record to external storage.
• Multiview Output: Monitor all sources, program, and preview via HDMI.
• Compact & Portable Design: Ideal for mobile production setups and desktop use.

Whether you are setting up a multi-camera live stream or managing a hybrid event, the RGBlink MINI-ISO is your go-to all-in-one video mixer switcher that delivers high-quality performance in a compact package.

Connectivity & Interfaces

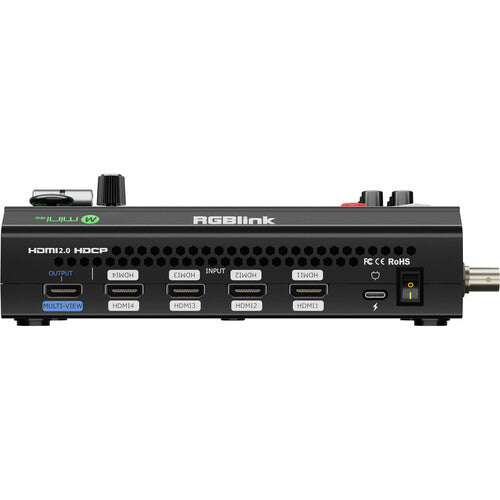

• HDMI 4K Inputs: 4× HDMI-A

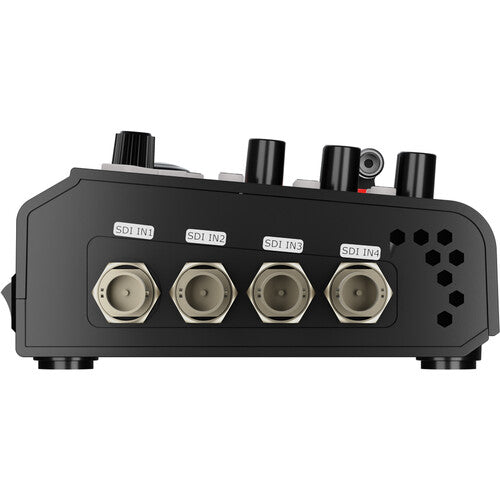

• SDI Inputs: 4× BNC (3G-SDI)

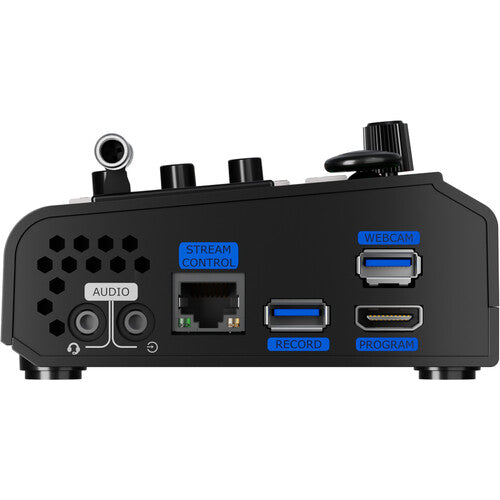

• USB Inputs:
   1× USB-A for UVC (Webcam input) 
   1× USB-A for Media Recording 
• NDI Input/Output: 1× RJ45 (LAN)
• HDMI Outputs: 2× HDMI-A (Multiview + Program)
• USB Outputs:
   1× USB-A (Recording) 
   1× USB-A (Streaming/UVC) 
• Streaming Support: RTMP(s), NDI via RJ45 (LAN)
• Audio I/O:
   Embedded Audio via HDMI 
   1× USB-A (Digital Audio Input) 
   2× 3.5mm Mini-Jack (Analog Audio Inputs) 
   1× 3.5mm Mini-Jack (Analog Audio Output) 
• Control & Communication:
   1× RJ45 for LAN / Streaming / Firmware Upgrades 
• Power Input: 1× USB-C (PD 3.0 Supported)

Performance Specifications

• Input Resolutions:
    HDMI 2.0: Supports up to 4K60 (3840×2160 & 4096×2160)
    SDI: 720p @ 50/60, 1080i @ 50/59.94/60, 1080p @ 23.98–60fps
    UVC (USB Cam): 1080p@60
    VESA: Various resolutions from 1024×768 to 1920×1200
• Output Resolutions (HDMI):
   1280×720p@50/60 
   1920×1080p@30/50/60 
   1080×1920p@60 (Portrait Mode) 
• Output Resolutions (USB):
   1280×720p@60 
   1920×1080p@24/25/30/50/60
• • Video Processing:
     RGB 8bit 
     YCbCr 4:4:4 / 4:2:2 8bit 
     Video Latency:  <3 frames

  Audio Features

  • Format: PCM, 2-Channel, 24-bit, 48kHz
  • Sampling Rate: 48kHz
  • Bitrate: 24bit



  Applications

  1. Live Streaming for Events
  Ideal for churches, weddings, seminars, conferences, and concerts, where multiple camera angles and media sources are used. The UVC output allows plug-and-play connection with streaming software (like OBS or Zoom).

  2. Educational & Training Content
  Useful in schools, coaching centers, or corporate training environments for switching between teacher camera, content display, and PTZ overview camera.

  3. Multi-Camera Podcasting & Interviews
  Switch between different angles (wide shot, close-up, host/guest) smoothly with transition effects, audio mixing, and picture-in-picture.

  4. Worship Services & Religious Broadcasts
  Combines SDI and HDMI cameras with PTZ control and streaming to platforms like YouTube, Facebook, or church websites.

  5. Professional Studio Setup
  A powerful centerpiece for a compact production studio—combining cameras, laptops, graphics, and microphones into a single stream or recording.

  6. Hybrid Meetings & Webinars
  Works for corporate boardrooms and hybrid meetings, managing camera feeds and presentations while streaming live to Zoom, MS Teams, etc.

  7. Live Product Launches or Demos
  Switch between close-up views, product presentations, and speaker views for polished online events.

  8. Government & Institutional Streaming
  Suitable for courtrooms, town halls, and public broadcasting where multiple video sources and secure streaming are necessary.

  9. Content Creators & Influencers
  Empowers creators to deliver professional-looking streams without needing large-scale studio gear.
