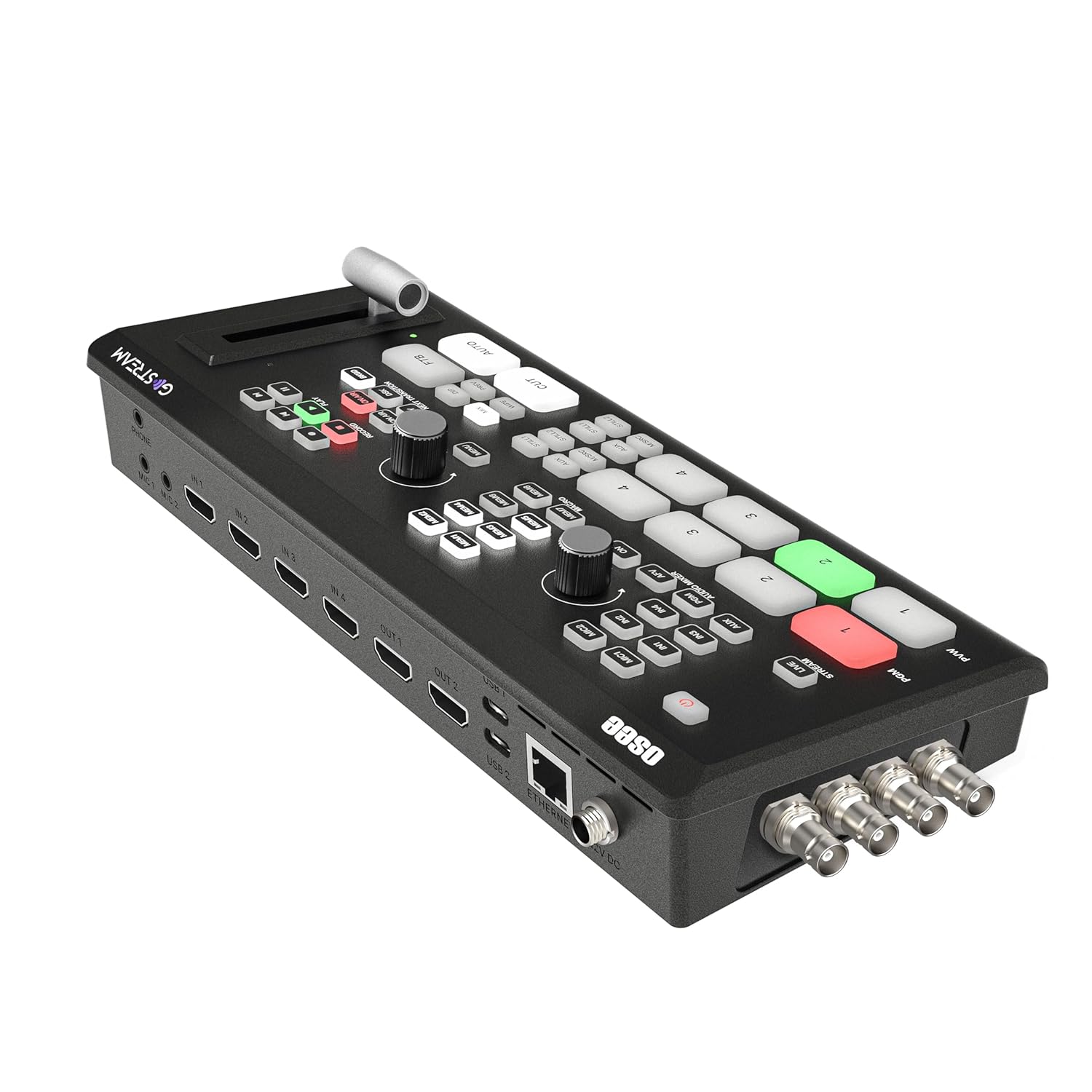

Osee GoStream Duet: SDI Video Mixer & Broadcast Switcher for Live Stream | NDI HX, Multi-Camera Switching

Osee GoStream Duet: SDI Video Mixer & Broadcast Switcher for Live Stream | NDI HX, Multi-Camera Switching

Rs. 38,000.00
Rs. 70,000.00 Rs. 38,000.00
Sale Sold out
Shipping calculated at checkout.
ORDER ON WHATSAPP

OSEE GOSTREAM DUET Specs

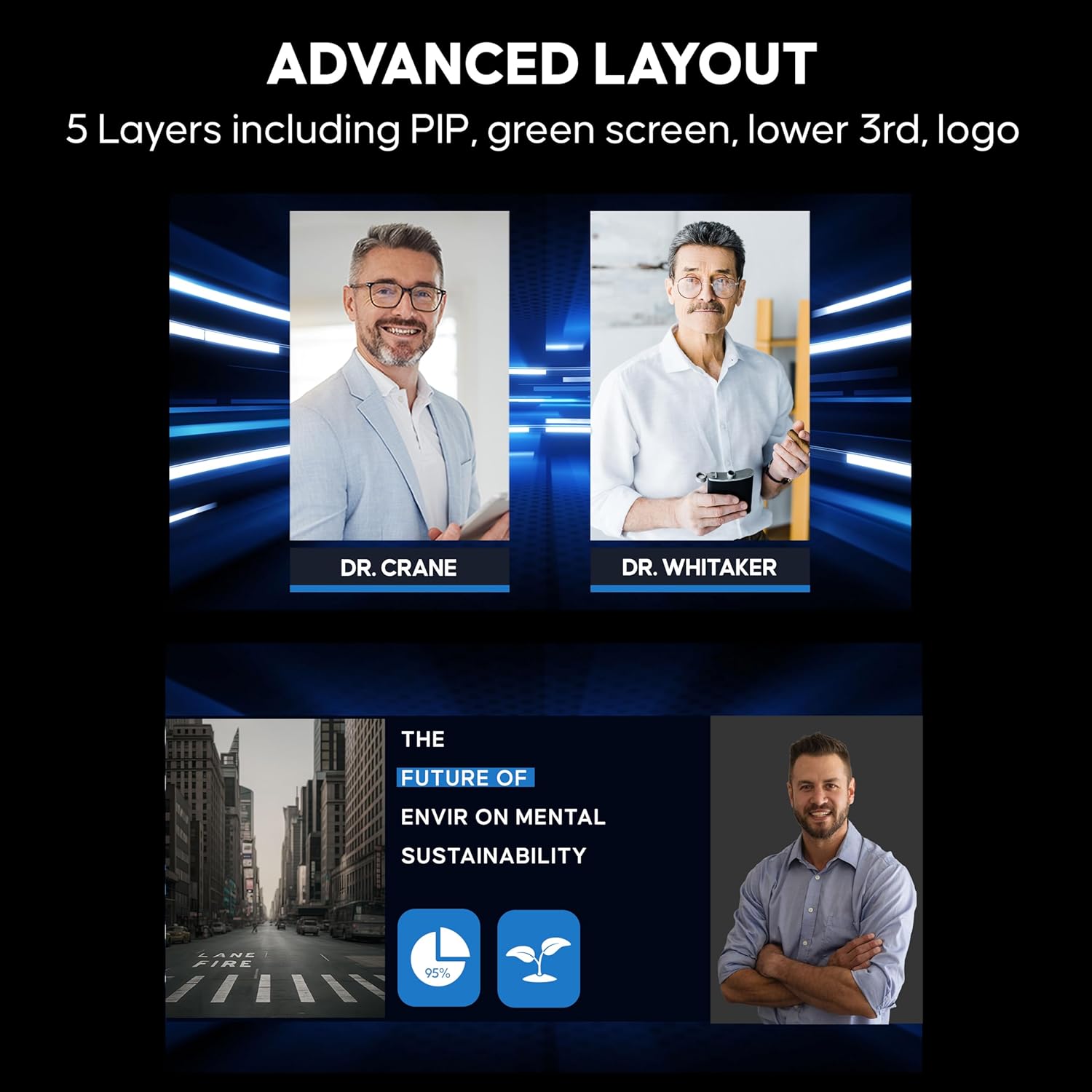

Mix Effects
Available M/E Layers
6 M/E
Effect Types
Transition, Chroma Key, Luma Key
Graphics Memory
32 Images
Downstream Keys
1x Chroma, Luma
Generators
5x Color
2x Pattern
Audio Mixing
8-Channel Mixing
Processing
Switching Type
Pushbutton, Software
Color Processing
12-Bit 4:2:2 YCbCr
8-Bit 4:4:4 RGB

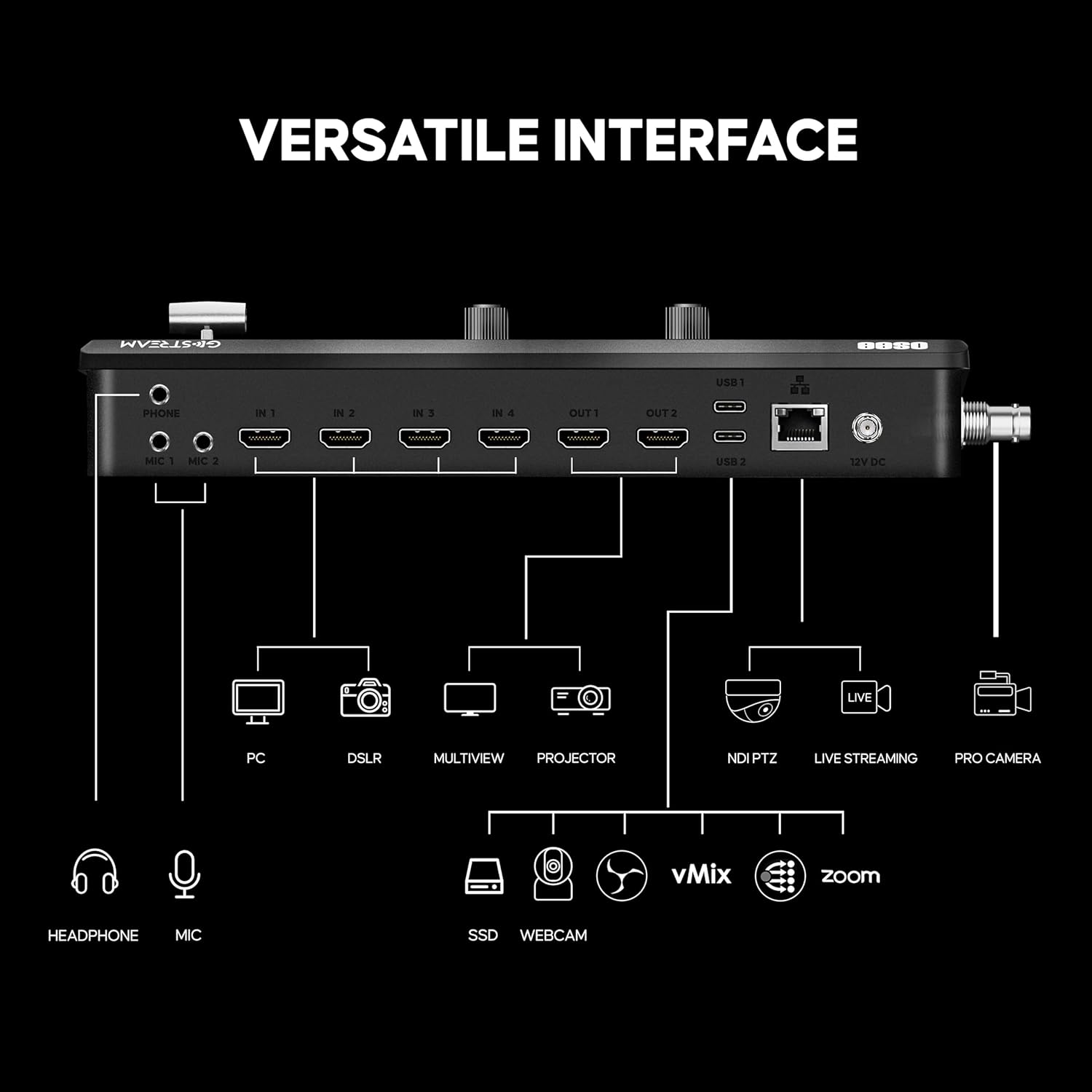

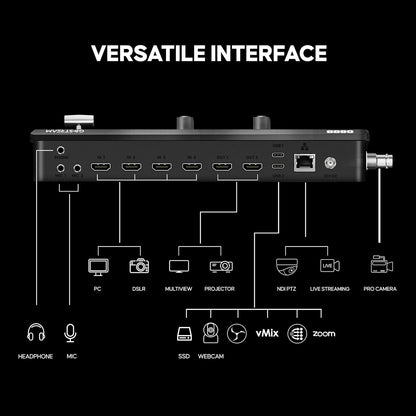

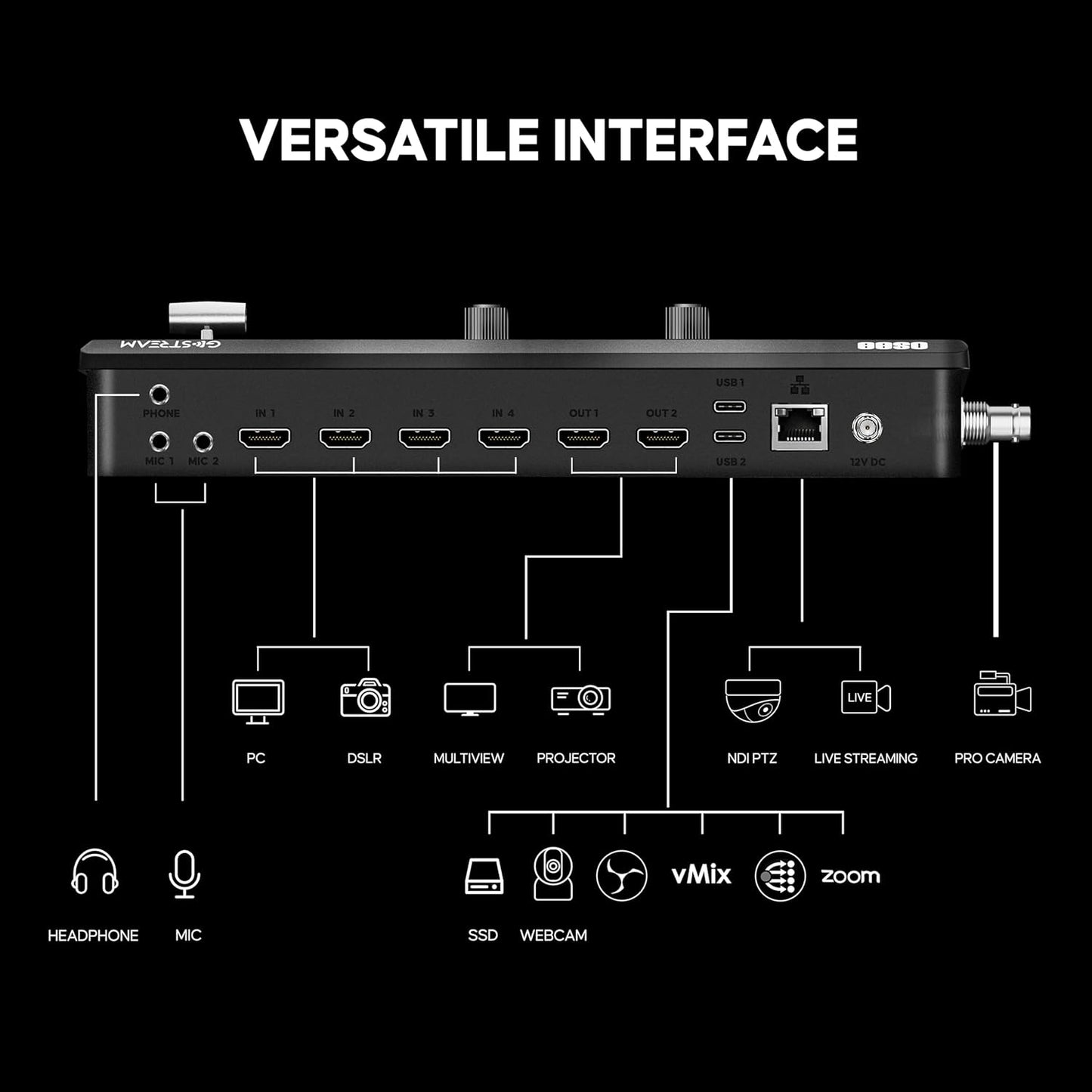

Input
Number of Video Input Sources
12

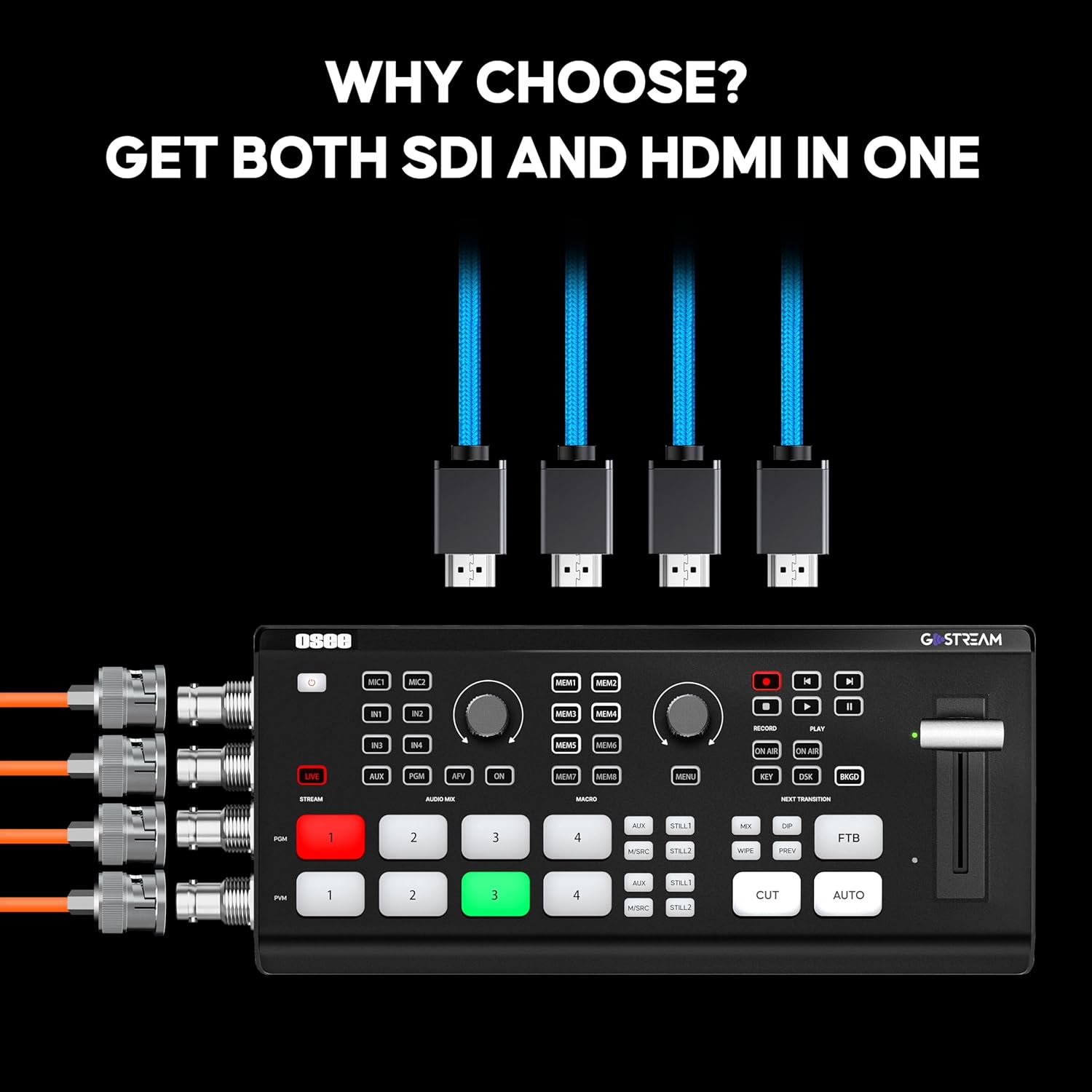

Video Inputs
4x HDMI Female
4x BNC (3G-SDI) Female
1x USB-C (UVC) Female
1x RJ45 (HX/NDI) Female
Input Video Format
HDMI (8/12-Bit 4:4:4/4:2:2 RGB, YCC)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
Audio Inputs
2x 1/8" / 3.5 mm TRS Mic
Input Audio Format
Analog
Embedded Audio Input
HDMI
SDI
RJ45
Output
Video Output Channels
5
Video Outputs
2x HDMI
1x USB-C
Output Video Format
HDMI (8/12-Bit 4:4:4/4:2:2 RGB, YCC)
1080p at 24/25/30/50/60 fps
Audio Outputs
1x 1/8" / 3.5 mm TRS Stereo
Embedded Audio Output
HDMI
Multiview Output
9-Way Multiview via HDMI
Monitor Output
1x HDMI
Connectivity
Other I/O
1x RJ45 LAN, NDI Input/Output
IP Encoding/Decoding
IP Video
1920 x 1080 at 24p, 25p, 30p, 50p, 60p Encoding
Transport Protocols
RTMP

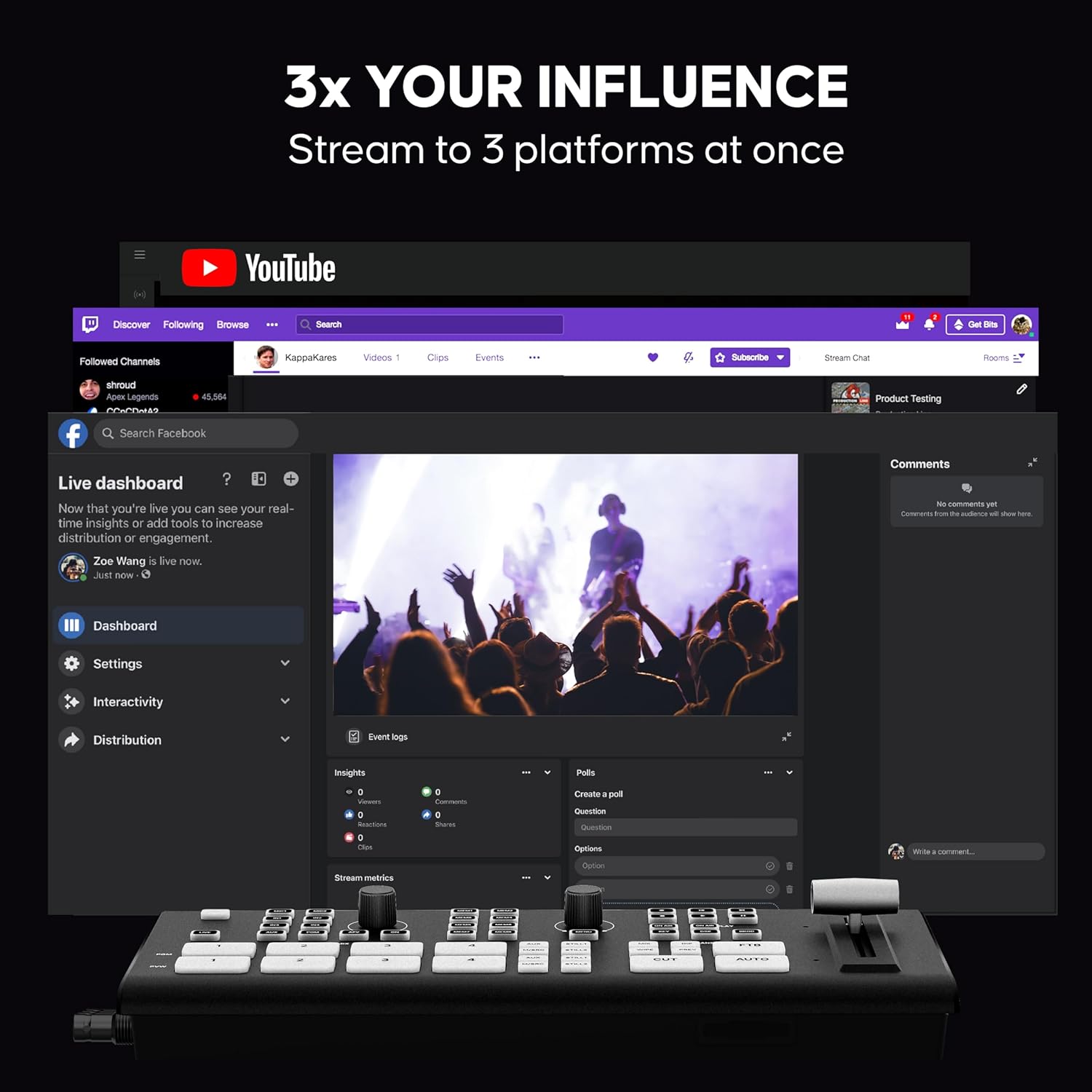

Simultaneous Streams
3 Streams
Compatible Services
Facebook Live, Instagram, TikToK, Twitch, YouTube Live

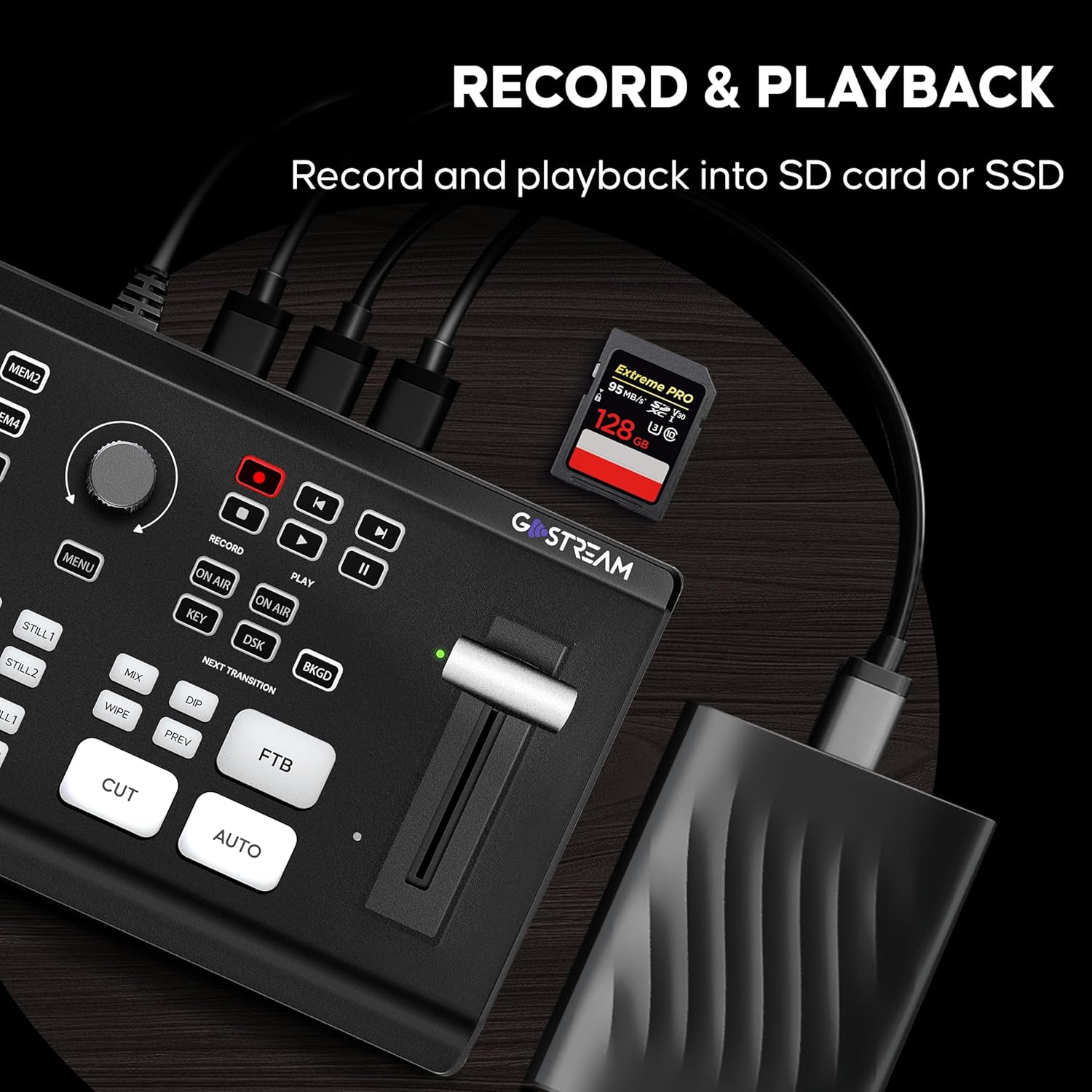

Internal Recording
Recording Media
1x SD (Unspecified Type), USB-A 3.0 / 3.1/3.2 Gen 1
Recording Modes
1920 x 1080p at 24/25/30/50/60 fps (70 Mb/s H.264/AVC)
Hardware
Processor
Not Specified by Manufacturer
Wireless
No
Power
Power I/O
1x Barrel (12 VDC ) Input
Power Consumption
Device: 12 VDC (14 W)
General
Operating Conditions
41 to 104°F / 5 to 40°C
Dimensions
9.9 x 4.2 x 1.9" / 252.4 x 107.3 x 49.3 mm
Weight
1.1 lb / 500 g
Packaging Info
Package Weight
2.675 lb
Box Dimensions (LxWxH)
12.1 x 5.9 x 3.9"





OSEE GOSTREAM DUET Specs

Mix Effects
Available M/E Layers
6 M/E
Effect Types
Transition, Chroma Key, Luma Key
Graphics Memory
32 Images
Downstream Keys
1x Chroma, Luma
Generators
5x Color
2x Pattern
Audio Mixing
8-Channel Mixing
Processing
Switching Type
Pushbutton, Software
Color Processing
12-Bit 4:2:2 YCbCr
8-Bit 4:4:4 RGB
Input
Number of Video Input Sources
12
Video Inputs
4x HDMI Female
4x BNC (3G-SDI) Female
1x USB-C (UVC) Female
1x RJ45 (HX/NDI) Female
Input Video Format
HDMI (8/12-Bit 4:4:4/4:2:2 RGB, YCC)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
Audio Inputs
2x 1/8" / 3.5 mm TRS Mic
Input Audio Format
Analog
Embedded Audio Input
HDMI
SDI
RJ45
Output
Video Output Channels
5
Video Outputs
2x HDMI
1x USB-C
Output Video Format
HDMI (8/12-Bit 4:4:4/4:2:2 RGB, YCC)
1080p at 24/25/30/50/60 fps
Audio Outputs
1x 1/8" / 3.5 mm TRS Stereo
Embedded Audio Output
HDMI
Multiview Output
9-Way Multiview via HDMI
Monitor Output
1x HDMI
Connectivity
Other I/O
1x RJ45 LAN, NDI Input/Output
IP Encoding/Decoding
IP Video
1920 x 1080 at 24p, 25p, 30p, 50p, 60p Encoding
Transport Protocols
RTMP
Simultaneous Streams
3 Streams
Compatible Services
Facebook Live, Instagram, TikToK, Twitch, YouTube Live
Internal Recording
Recording Media
1x SD (Unspecified Type), USB-A 3.0 / 3.1/3.2 Gen 1
Recording Modes
1920 x 1080p at 24/25/30/50/60 fps (70 Mb/s H.264/AVC)
Hardware
Processor
Not Specified by Manufacturer
Wireless
No
Power
Power I/O
1x Barrel (12 VDC ) Input
Power Consumption
Device: 12 VDC (14 W)
General
Operating Conditions
41 to 104°F / 5 to 40°C
Dimensions
9.9 x 4.2 x 1.9" / 252.4 x 107.3 x 49.3 mm
Weight
1.1 lb / 500 g
Packaging Info
Package Weight
2.675 lb
Box Dimensions (LxWxH)
12.1 x 5.9 x 3.9"



Items Included

  • OSEE GoStream Duet SDI/HDMI/NDI|HX Live Stream Video Mixer/Switcher/Recorder
  • Power Adapter
