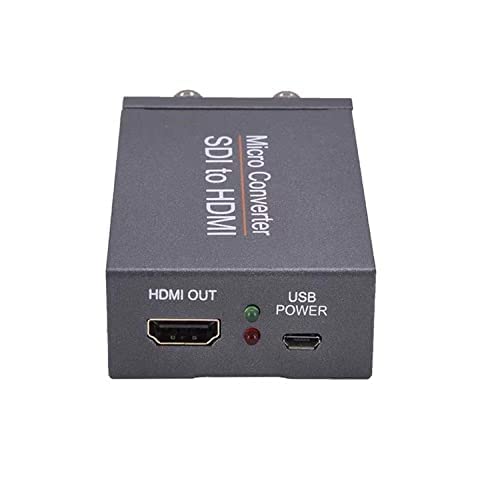

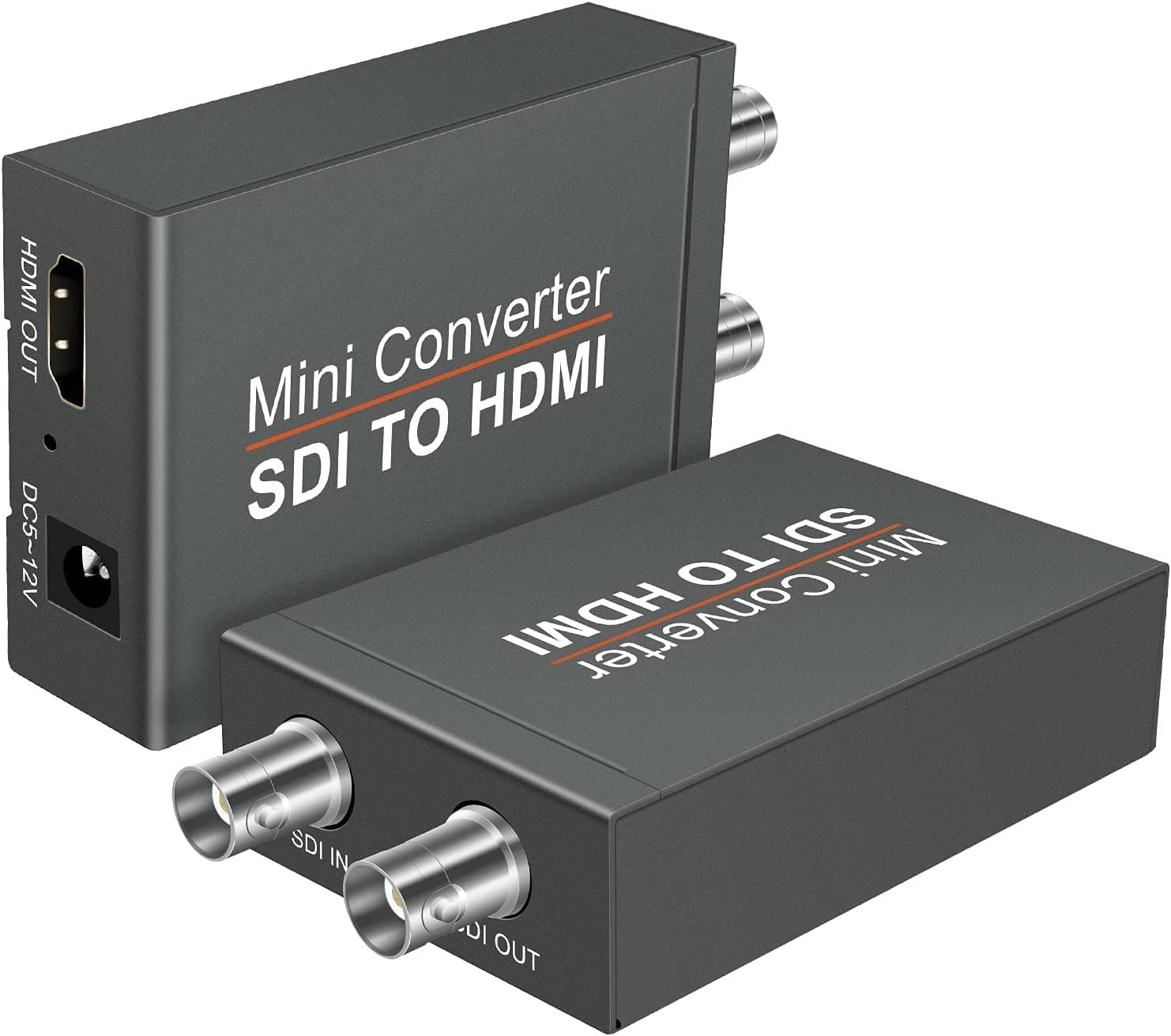

Micro Converter SDI to HDMI Converter

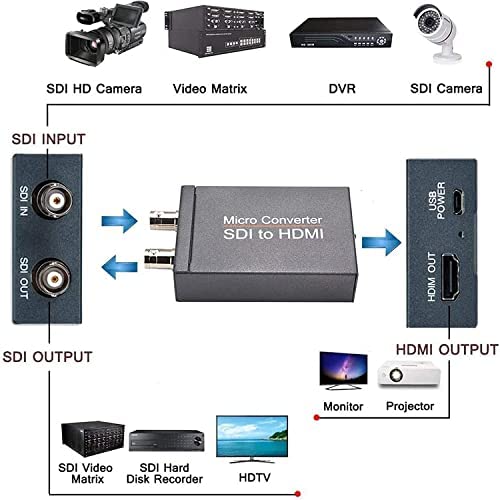

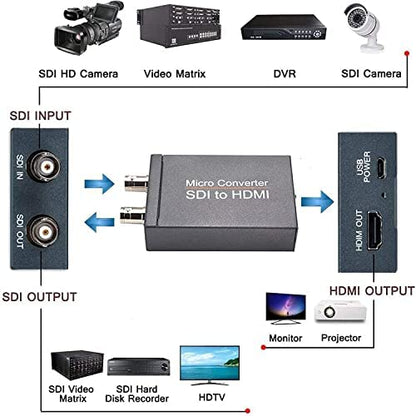

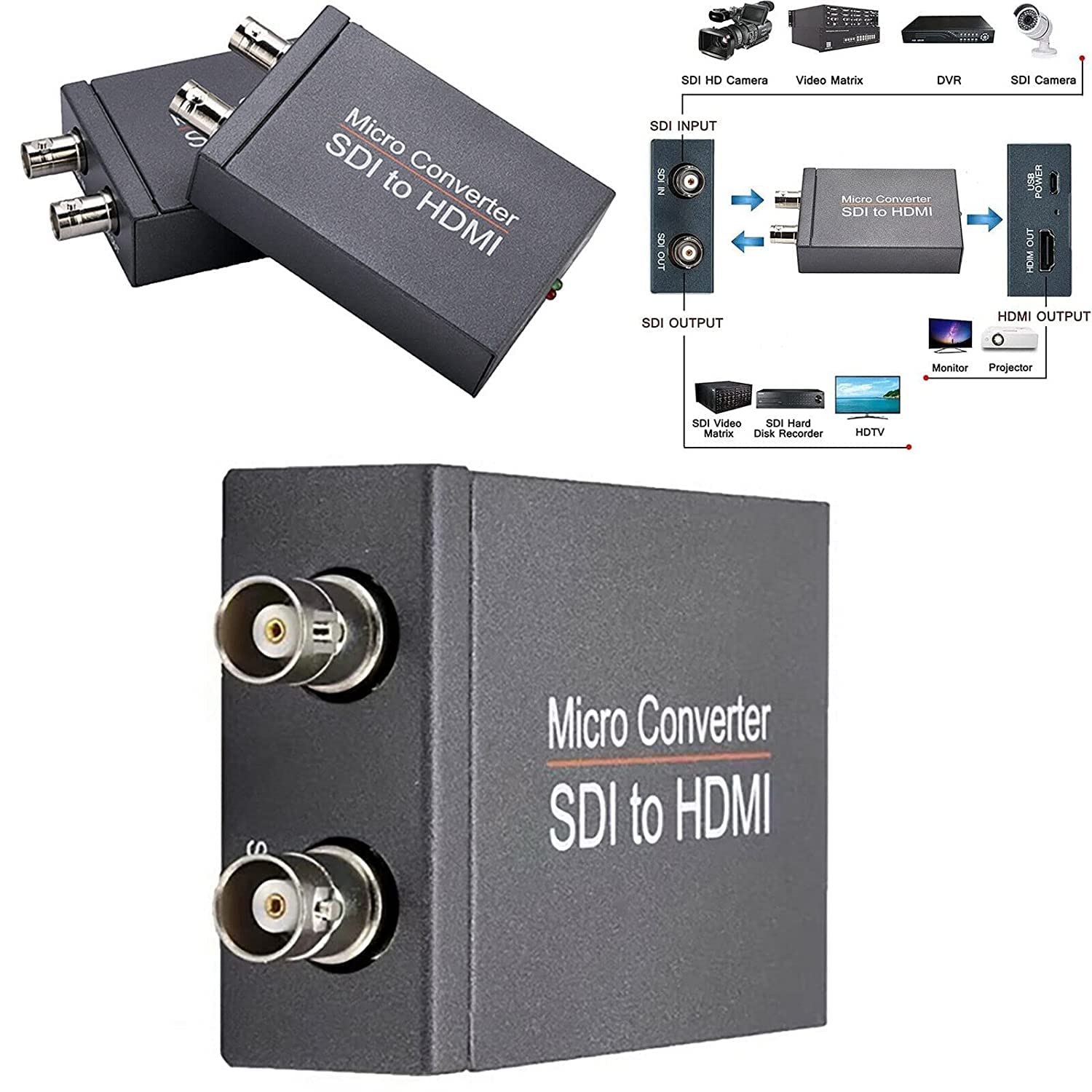

SDI to HDMI CONVERTER & SDI to SDI EXTENDER SDI to HDMI Converter Designed for SDI to HDMI Converter allows you easily display your work on common HDMI displays. The loop-through design also allows you to view the original SDI content on an SDI monitor simultaneous with the HDMI display. This converter supports bit rates up to 2.970 Gbps and supports SD-SDI, HD-SDI, and 3G-SDI video signals Features SDI data transfer rates: 270Mb/s, 1.485Gb/s, 2.97Gb/s SDI Input Resolutions: 480i/ 567i, 720P@30/ 50/ 60Hz, 1080i@50/ 60Hz, 1080p@50/ 60Hz, 1080P@24/ 25/ 30Hz. HDMI Output Resolutions: 720P@50/ 60Hz, 1080i@50/ 60Hz, 1080P@24/ 25/ 30/ 50/ 60Hz. Auto detect resolution of HD-SDI, SD-SDI and 3G-SDI. Support SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C. One way SDI output, with the Re-clock function, can support multiple cascaded. No need to install drivers, portable, plug and play. Overview HDMI embedded audio output. This SDI to HDMI Converter converts pure digital SDI signals to HDMI signal Up Scale to HDMI 1080P@60Hz. Auto format detection for 3G-SDI, HD-SDI and SD-SDI input signal. Tips: This SDI TO HDMI converter the input interface is BNC, you can connect this item to your device with BNC interface, such as SDI camera, and the output interface is HDMI, you can connect device with HDMI interface, such as HDTV, Projector. Specifications - Product Type: SDI to HDMI Converter - Input Port: 1 x BNC (SDI/HD-SDI/3G-SDI) - Output Port: 1 x HDMI Port, 1 x SDI Output (BNC) - Power Supply: USB DC 5V/1A NOTE 1. This converter ONLY Supports SDI to HDMI, does not support HDMI to SDI. 2. Only Support SDI Full HD up to 1080p,not support UHD 4K. 3. Only Support SDI signal, not support RF,CVBS,AHD,TVI,CVI.
